Repair station for Stilo bicycles 18.048.1

Street Furniture with style.

bicycle repair stations
stainless steel repair station
Stilo bicycle station
Modernly designed bicycle repair station
STILO self-service bicycle repair station
Bicycle holder - Stilo bicycle repair station
STILO station toolkit
STILO station - bicycle hand pump
STILO station - multitool

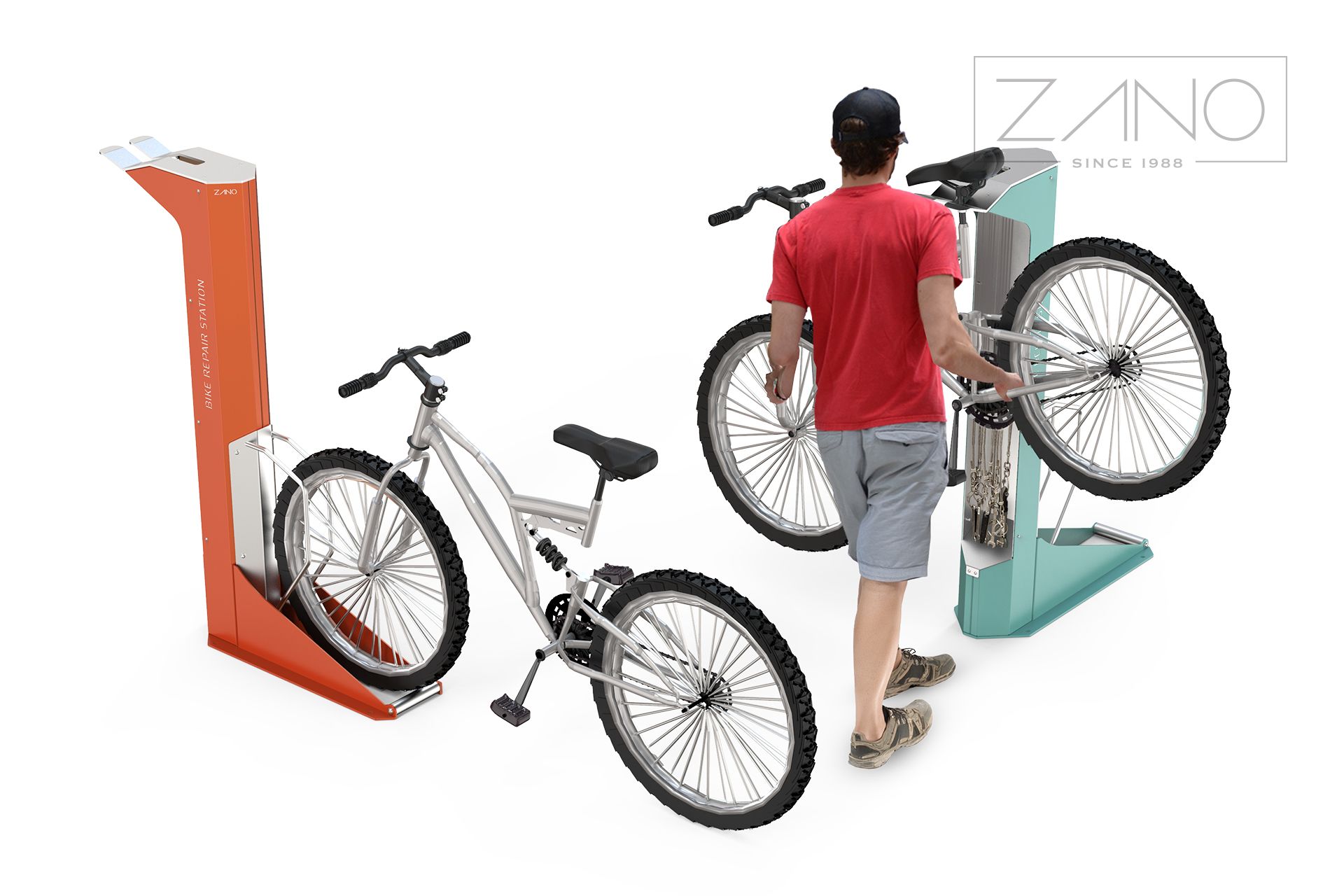

Urban self-service repair stations

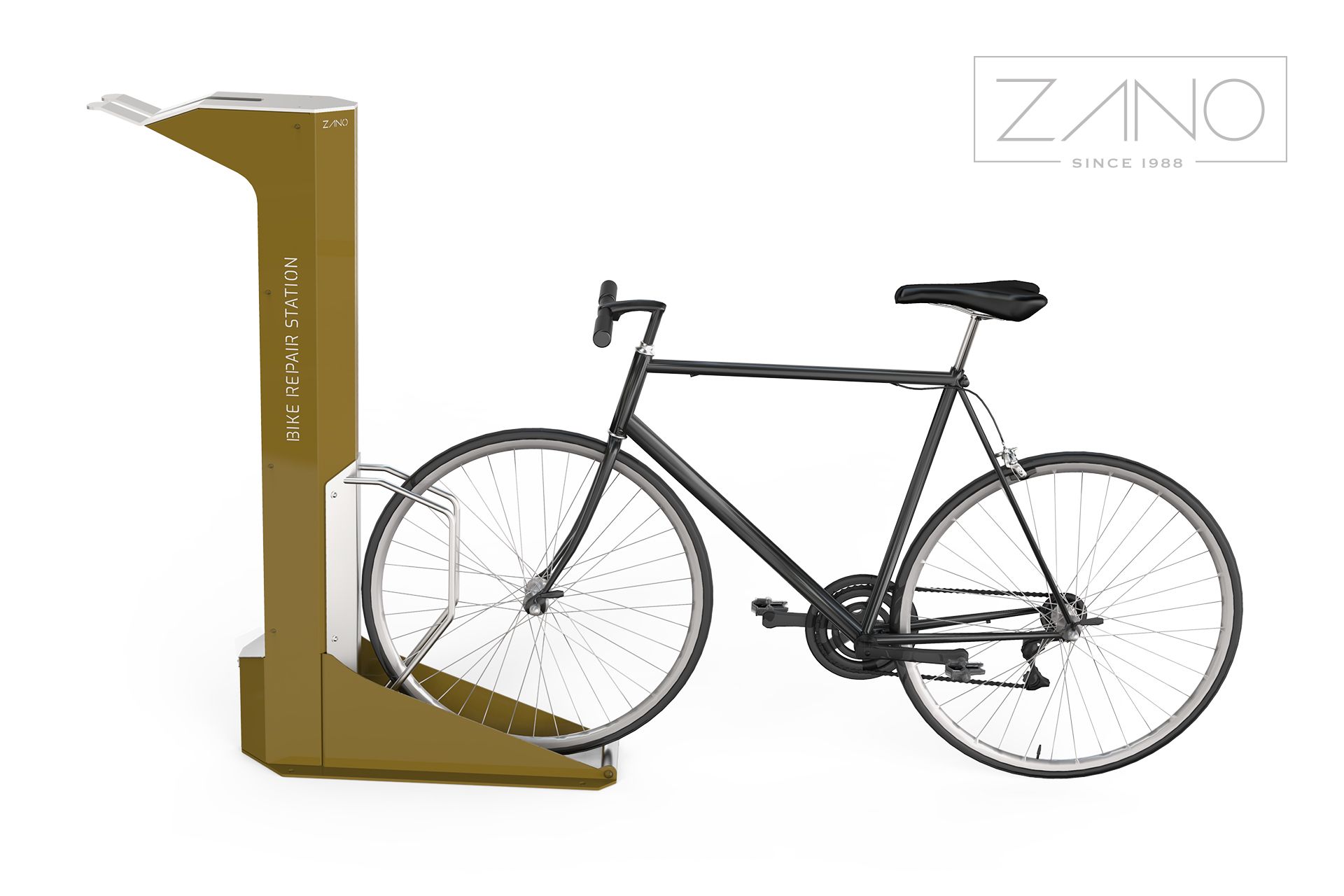

Stilo 18.048.1 | ZANO urban furniture

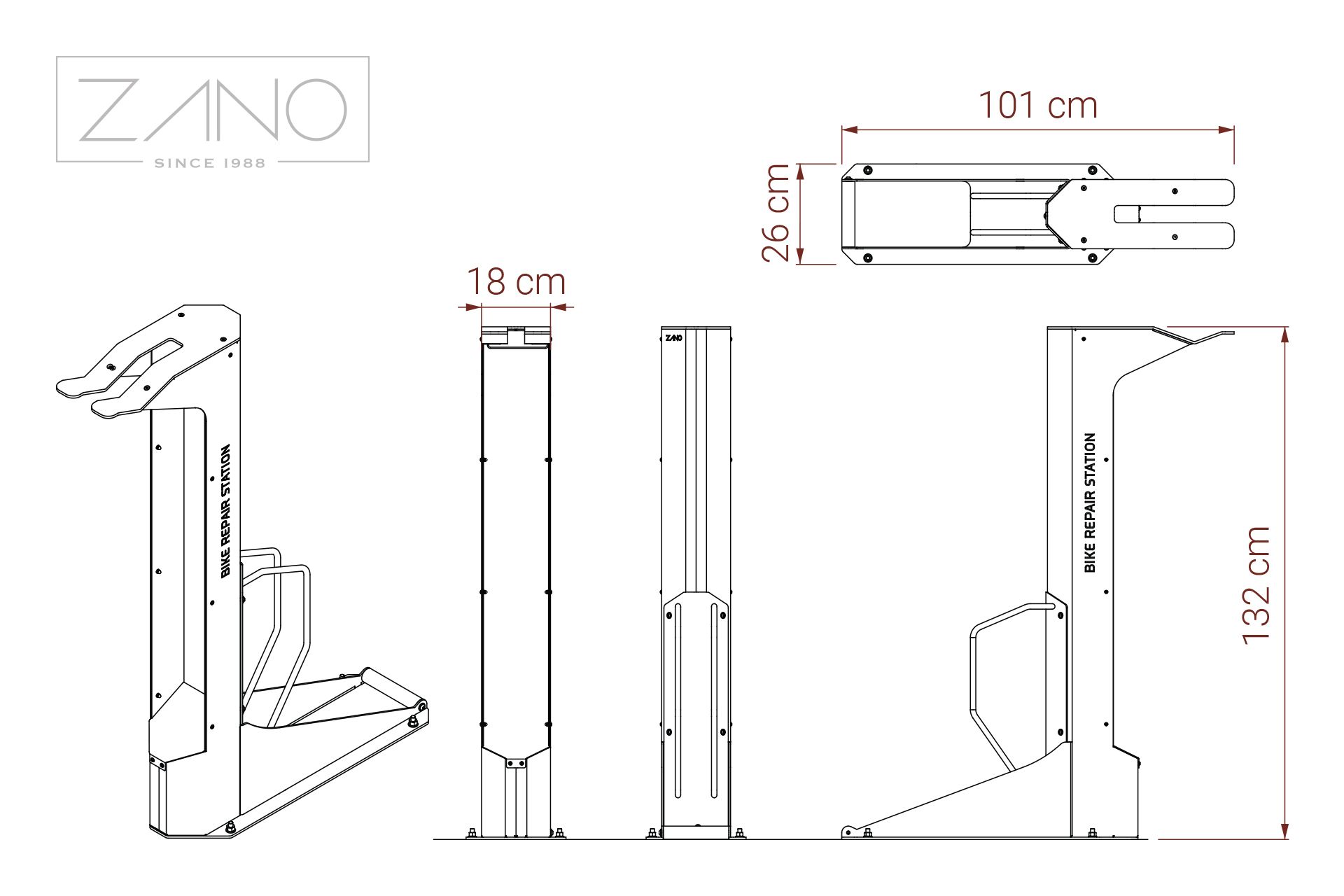

Dimensions - stilo 18.048.1

specification Explore all Roll all

Materials: expand scroll down

  • stainless steel or carbon steel, galvanised and powder-coated in RAL colour

Dimensions: expand scroll down

  • width: 26 cm
  • height: 132 cm
  • depth: 101 cm

Weight: expand scroll down

  • 30 kg

options Explore all Roll all

Methods of installation: expand scroll down

  • attached by bolts to foundation

Logo: expand scroll down

  • none
  • etching in stainless steel
  • cut in steel
  • sticker

available colours

Contact our representative in your country

Global
Designer

Original project: Iwona Żaczek

All rights reserved.

Downloads

product card
STILO Self-service bicycle repair station
Modernly designed bicycle repair stationSTILO self-service bicycle repair stationBicycle holder - Stilo bicycle repair stationSTILO station toolkitSTILO station - bicycle hand pumpSTILO station - multitool

Choose from many colour options!

The station is made of carbon steel, galvanised and can be powder-coated in the colour of your choice from the RAL palette. Elements such as the bicycle rack, the inner part of the station, the tools and the bicycle stand are made of stainless steel. Optionally, the station can be made entirely of stainless steel.

STILO repair station RAL colours

Station equipment

The station equipment consists of a bicycle stand, a bicycle rack, a tool kit with a hand pump.

Stilo station - equipment

Tools at the station

The repair station contains 22 tools made of stainless steel and high-quality plastic (tyre buckets). The tools are connected to the steel cables with steel swivels. This allows comfortable use of the tools (the tools do not twist) and allows access with the tool to any place on the bike suspended from the handle.

Stilo station - tools

Model description

The self-service bicycle repair station Stilo, is designed for ad-hoc repairs and adjustments of bicycles by the user himself, using the construction of the device as a base and tools included in the equipment of the repair station. The station can be used in the city for cycle paths as well as for long-distance trips. Due to its size, the station can be used by both children and adults.


The station is made of steel. The customer may choose a model made entirely of stainless steel or galvanised carbon steel powder-coated in a specified RAL colour.. In the painted version, components such as the top bicycle rack and the inner wall with tool storage remain in stainless steel. The station is mounted to the ground with wall plugs. The bicycle repair tools are attached to the station with PVC-coated steel cables to prevent theft.


Tools:

  • screwdriver; stainless steel Phillips and flathead
  • spanners; stainless steel; 13, 14, 15, 16 mm
  • Allen spanners; stainless steel; 2, 3, 4, 5, 6, 8 mm
  • hand pump; compatible with Presta and Schreder valves
  • chain stripper; 9, 10, 11 speed (supports Shimano 11 speed SPD, does not support Campagnolo 11 speed chain!); stainless steel
  • spoke (nipple) spanner; Mavic MTB, 3.22, 3.45 and CNSPOKE spanner (3.2-3.3-3.4 mm); stainless steel
  • T 25 star spanner; stainless steel
  • 8 mm disc brake wedge + bottle opener; stainless steel
  • tyre buckets; suitable for removing tubeless tyres and high-strength plastic wire tyres

Stilo line

The models of the Stilo line are characterised by minimalism, simplicity of shape and a sophisticated form of detail. They are designed with modern architecture in mind and include urban benches, deckchairs, litter bins, street pots and much more.

Our bicycle stations

Our self-service bicycle stations have been created as a response to the needs of the growing network of bicycle paths and increasingly popular bicycle transport in our cities. Thanks to the installed tools, they allow for minor repairs and maintenance of bicycles. Panadto stations are distinguished by a contemporary design and robust construction and quality of materials used.

Manufacturer

ZANO is a manufacturer of street furniture, whose standard range can be adapted to individual customer needs and personalised as appropriate. In addition to the standard range of street furniture, the company designs and produces individual orders.
