Pergola module 3 x 3 m 22.101.1
Small architecture with style.
choose
    | specification Explore all Roll all available coloursDesigner FAQCheck the answers to frequently asked questions |
Downloads
DWG filesproduct card
Pergolas are functional and aesthetically pleasing garden structures that can be used as canopies not only in gardens, but also in street spaces, bus stops, as bicycle sheds or shelters in office buildings. Our pergolas consist of modules: two base modules, three complementary modules and four finishing elements, in the form of walls with boards or ropes for climbing plants. They are made of galvanised steel, powder-coated in the indicated RAL colour, and the wood used in the pergolas is varnished or oiled coniferous wood of European origin and exotic hardwood. In addition, the pergola can be complemented with pots from the Stilo series, which will perfectly complement the arrangement of the space.
Basic modules
Complementary modules
Finishing modules
Examples of combinations
By combining the base modules with complementary modules and finishing elements, such as boards or steel ropes for climbing plants, we can create a variety of pergola forms. The construction allows for any expansion, adapting to specific needs and spatial possibilities. In this way, the pergola can fit perfectly into any arrangement, whether in the garden or in an urban space.
Model description

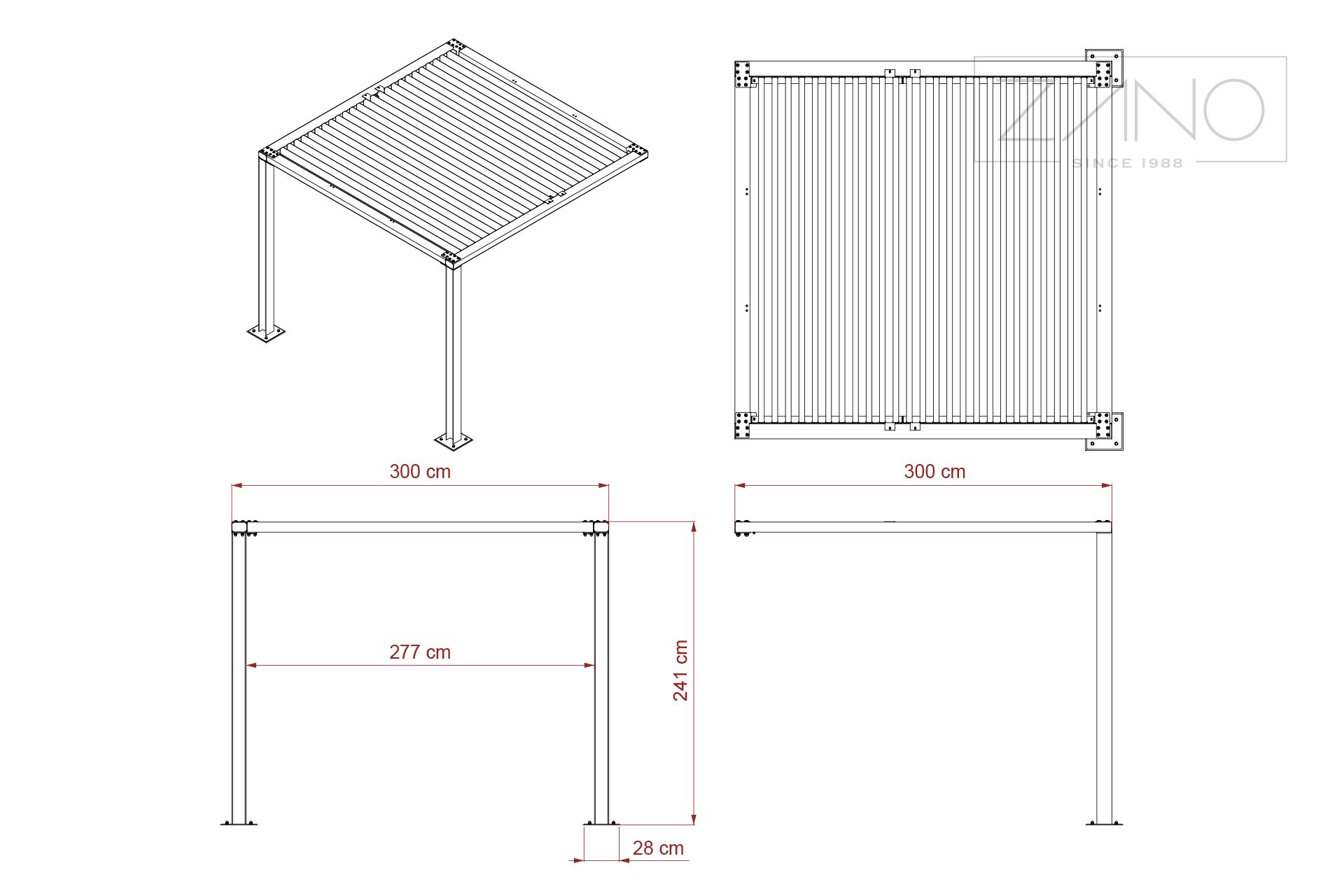

A pergola is an installation consisting of a sturdy steel structure and horizontal beams, with the option to add walls with steel cables for climbing plants. It is ideal for creating a shady outdoor seating area while adding aesthetic appeal to a garden, park or terrace. Our pergola consists of two basic modules of 3 x 3 m and 3 x 2 m. In addition, it can be extended with complementary modules in a variety of ways according to the customer's needs. The structure of the pergola is bent, welded and bolted from 120 x 114 mm I-beams and 120 x 80 mm rectangular profiles from s235Jr carbon steel, galvanised and powder-coated according to RAL palette. Roofing of the pergola using 17 planks of 45 x 70 x 2740 mm. The boards can be made of European coniferous wood impregnated and varnished twice or exotic wood impregnated and oiled twice. It is possible to additionally finish the side walls of the pergola with boards or steel cables (finishing modules).
Modern pergolas
We offer a wide range of terrace pergolas, canopies and shelters, which are the ideal solution for creating cosy and functional spaces on terraces, balconies and in gardens. Our products are designed with durability, aesthetics and functionality in mind, making them the ideal choice for anyone looking for robust and elegant outdoor architectural solutions.
Modular construction
The pergolas are made up of several modules, allowing flexibility to adapt them to different spaces and needs. The basic modules measure 3x3 metres and 3x2 metres and are equipped with four supports. In addition, complementary modules are available that can be easily combined with the basic modules. The complementary modules have two legs and are available in 3x3 m, 3x2 m, and 2x3 m.
Manufacturer
ZANO is not just a trade intermediary. As a manufacturer of small architecture, we have a greater capacity to meet the expectations of our customers, adapting our designs to your specific needs accordingly.
